Densify Loose Soil with Vibrocompaction: A Ground Improvement Technique

Vibrocompaction is a ground improvement technique that densifies the soil by shaking it with a vibro probe.

Vibro Compaction Technique

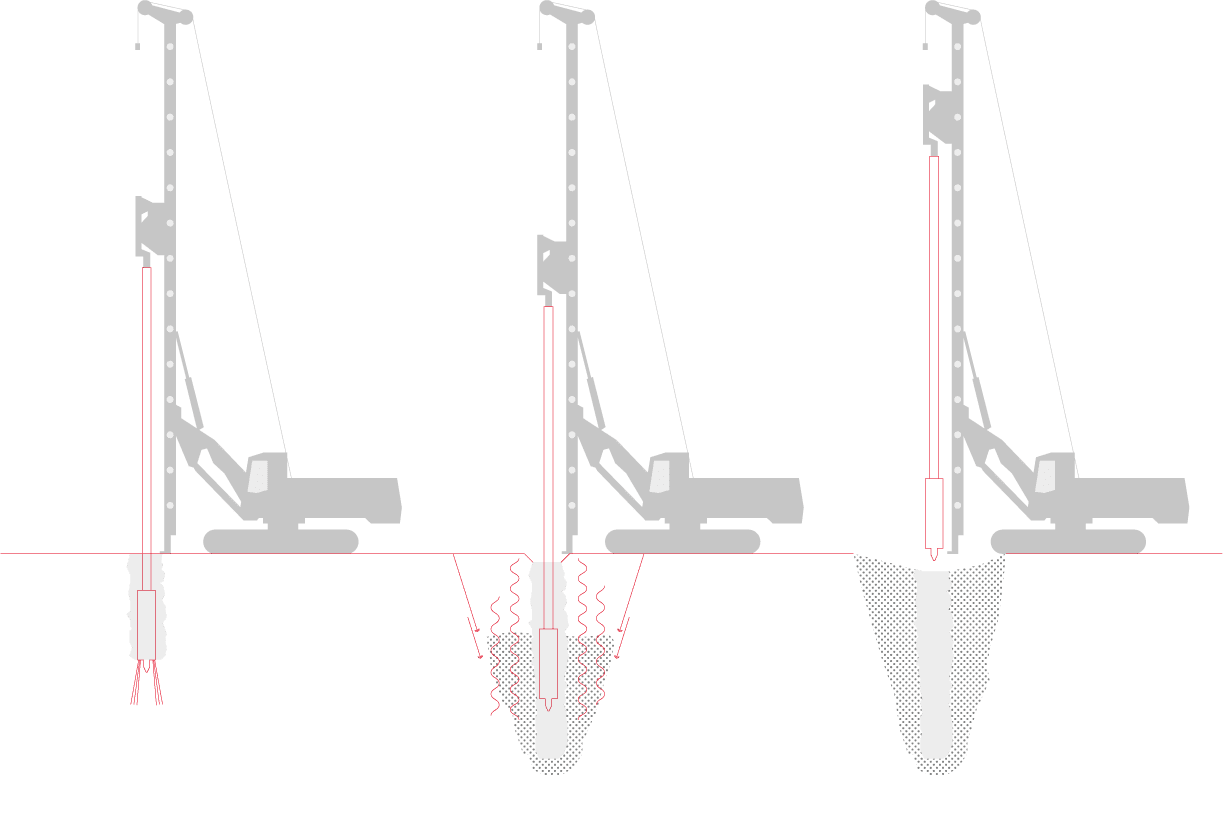

Vibro Compaction is a ground improvement technique. Loose soil or fill can be compacted at depth through insertion of vibrating probes together with a large volume of water to generate localized liquefaction of the soil. This enables the particles to rearrange themselves in a denser formation and thus increases the overall density of the soil.

Advantages of Vibro Compaction

The use of a vibrating probe makes it possible to reach large depths compared to compaction carried out at the surface (dynamic, rapid impact). Vibro Compaction relies on overburden pressure of soils above the treatment level (included collapse) therefore it is not very effective in the top two meters of soil generally due to a lack of vertical confinement.

Applications of Vibro Compaction

This technique is usually employed to stabilise or treat hydraulic fill, for example to prevent liquefaction or limit thrust behind quay walls.

Contact us today to ensure the safe and reliable operation of your industrial plant and equipment. Our foundation solutions are tailored to your unique needs and soil conditions, providing cost-effective and durable results.

Vibrocompaction FAQs

What settlement is to be expected during works?2023-03-09T11:04:15+01:00

The initial trial area defines the value precisely, but as a general rule, vibrocompaction of fill placed hydraulically generates settlement amounting to 7 to 10% of the height of the soil treated.
