Enhancing Soil Stability with Compaction Grouting: A Zero-Spoil Ground Improvement Technique
Compaction grouting is a ground improvement technique that densifies the soil by grouting under pressure a network of inclusions.
What is Compaction Grouting?
It is a the use of a mortar or concrete to laterally compact soils without vibration.

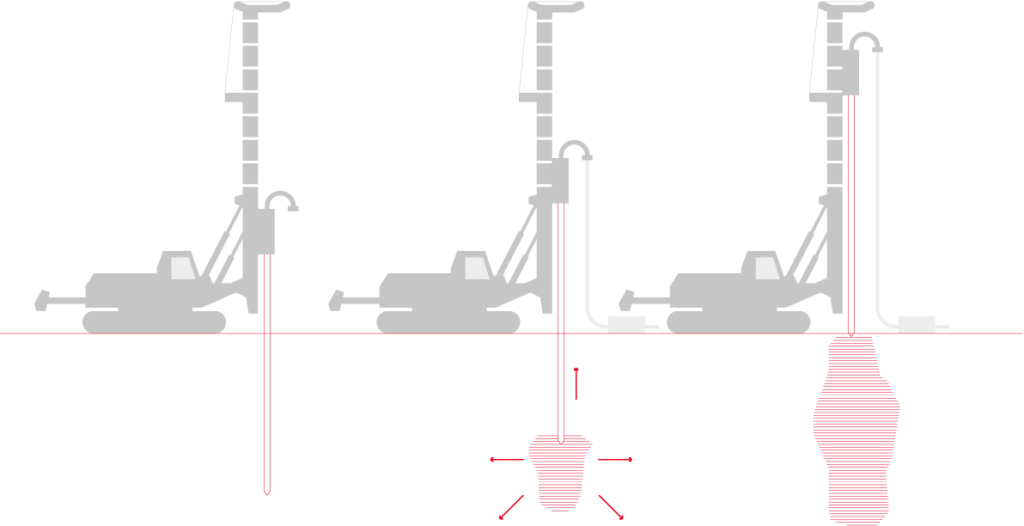

The treatment involves the injection of a mortar, generally with high viscosity, under pressure and at controlled flow rate, which displaces the soil around the drilling tool and subsequently compacts it. Compaction ratios for this technique can be quite high and are generally in the range of 6-10%.
Horizontal compaction of the ground makes it possible to treat soils against liquefaction. Continuous columns are not needed however the method will normally ensure continuity of the columns formed as this can also help reinforce the soil. The final product can therefore be both reinforcement and increase in density of the soil.
Compaction Grouting FAQ
Compaction grouting is a quasi-static process with controlled pressure and injection rates. There is therefore no risk of increasing pore water pressure nor generating post-construction settlement.
